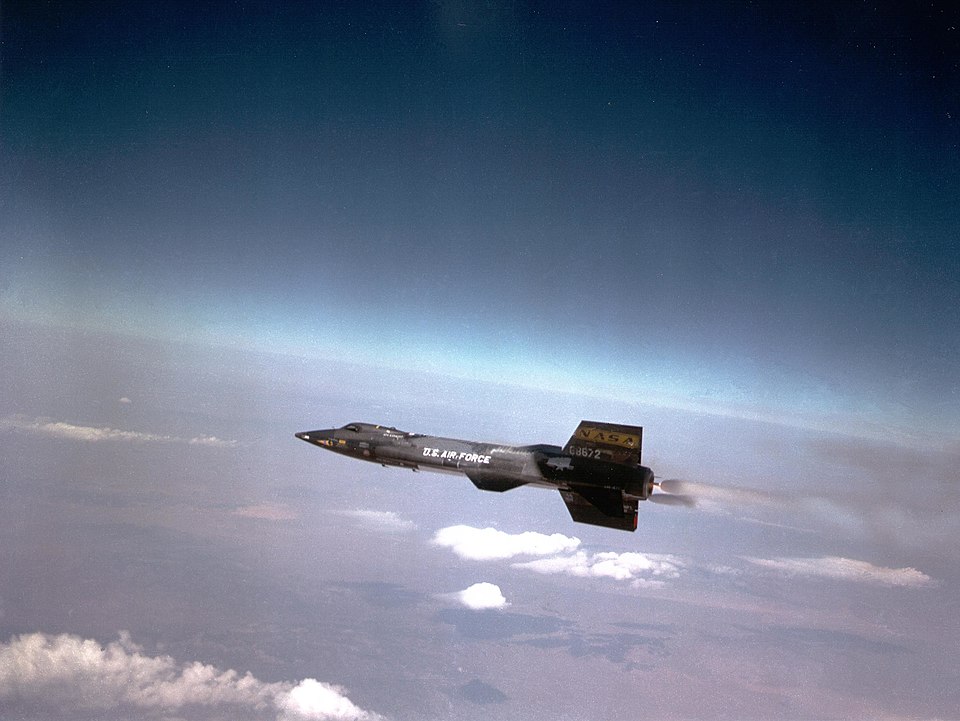

North American X-15

Last updated: March 26, 2026

Overview

The X-15 remains the fastest crewed aircraft ever built, reaching a staggering Mach 6.7 (7,274 km/h) on October 3, 1967, piloted by William J. Knight. This hypersonic rocket-powered aircraft pushed the boundaries of human flight to the edge of space itself.

Design & Development

Built with an Inconel X nickel alloy skin to withstand temperatures exceeding 1,200°F during hypersonic flight, the X-15 was a marvel of engineering. Its XLR99 throttleable rocket engine produced 57,000 lbf of thrust. The aircraft used reaction control thrusters for attitude control at extreme altitudes where aerodynamic surfaces were ineffective.

Operational History

Over 199 flights from 1959 to 1968, the X-15 set numerous speed and altitude records. It reached 107.8 km altitude—well above the Kármán line defining the edge of space. Eight pilots earned astronaut wings flying the X-15. The program contributed critical data to the development of the Space Shuttle and all subsequent hypersonic research.

Limitations & Challenges

The X-15 pushed the boundaries of human endurance and material science, but at significant risk. The aircraft experienced several near-fatal incidents: on November 9, 1962, pilot Jack McKay crash-landed X-15 #2 after an engine failure, suffering severe spinal injuries. On November 15, 1967, pilot Michael Adams was killed when X-15 #3 entered a hypersonic spin during re-entry and broke apart at approximately 60,000 feet — the program’s only fatality.

The rocket-powered design imposed severe operational constraints: total powered flight time was only 80-120 seconds per mission, requiring a B-52 mothership for air launch. The Inconel X alloy airframe, while heat-resistant, experienced structural fatigue from repeated thermal cycling between -200F on the ground and over 1,200F at hypersonic speeds. Post-flight inspections frequently revealed warped panels and heat damage. The program was ultimately limited by the human pilot’s ability to withstand the extreme G-forces and heating environments that higher speeds would demand [1].

Notable Records

• Speed record: Mach 6.7 (still unbroken for crewed aircraft)
• Altitude record: 107,960 meters
• First aircraft to use reaction controls for space-like maneuvering

Armament & Weapons

The X-15 was a research vehicle and carried no weapons. It was equipped with extensive instrumentation for measuring aerodynamic heating, structural loads, and control effectiveness at hypersonic speeds. A ball nose sensor measured airflow angles, and the aircraft carried multiple cameras and data recorders.

Video

Frequently Asked Questions

How fast is the X-15?

The X-15 reached Mach 6.7 (4,520 mph / 7,274 km/h), making it the fastest crewed aircraft ever flown. This record was set by William “Pete” Knight on October 3, 1967.

Did the X-15 go to space?

Yes. The X-15 reached a maximum altitude of 354,200 feet (67.08 miles / 107.96 km), exceeding the Kármán line. Several X-15 pilots earned astronaut wings.

How many X-15 aircraft were built?

Three X-15 aircraft were built by North American Aviation. The program completed 199 flights between 1959 and 1968.

Is the X-15 still in service?

No. The X-15 was a research aircraft operated jointly by NASA and the USAF from 1959 to 1968. It contributed invaluable data to the Space Shuttle program.

References & Sources

• Wikipedia — North American X-15
• NASA — North American X-15
• Smithsonian Air & Space Museum — North American X-15
