βοΈ Full Specifications
| Designation | SR-71A |
| Manufacturer | Lockheed Skunk Works |
| Country | πΊπΈ United States |
| First Flight | 1964 |
| Service Entry | 1966 |
| Retired | 1998 |
| Crew | 2 |
| Length | 32.74 m (107.4 ft) |
| Wingspan | 16.94 m (55.6 ft) |
| Height | 5.64 m (18.5 ft) |
| Empty Weight | 30,600 kg (67,473 lb) |
| Max Takeoff Weight | 78,000 kg (171,990 lb) |
| Max Speed (Mach) | 3.3 |
| Max Speed | 3,540 km/h |
| Service Ceiling | 25,900 m (84,978 ft) |
| Range | 5,400 km (3,353 mi) |
| Engine | 2 Γ Pratt & Whitney J58 (JT11D-20B) hybrid turbo-ramjet |
| Thrust (each) | Dry 145 kN Β· AB 151 kN |
| Production | 32 |
π Operators
π Variants
- A-12 β Single-seat CIA reconnaissance predecessor
- YF-12 β Interceptor prototype with AIM-47 missiles
- SR-71A β Primary production reconnaissance variant
- SR-71B β Two-seat trainer with elevated rear cockpit
- SR-71C β Hybrid YF-12 + SR-71 (one built)
βοΈ Armament
Overview

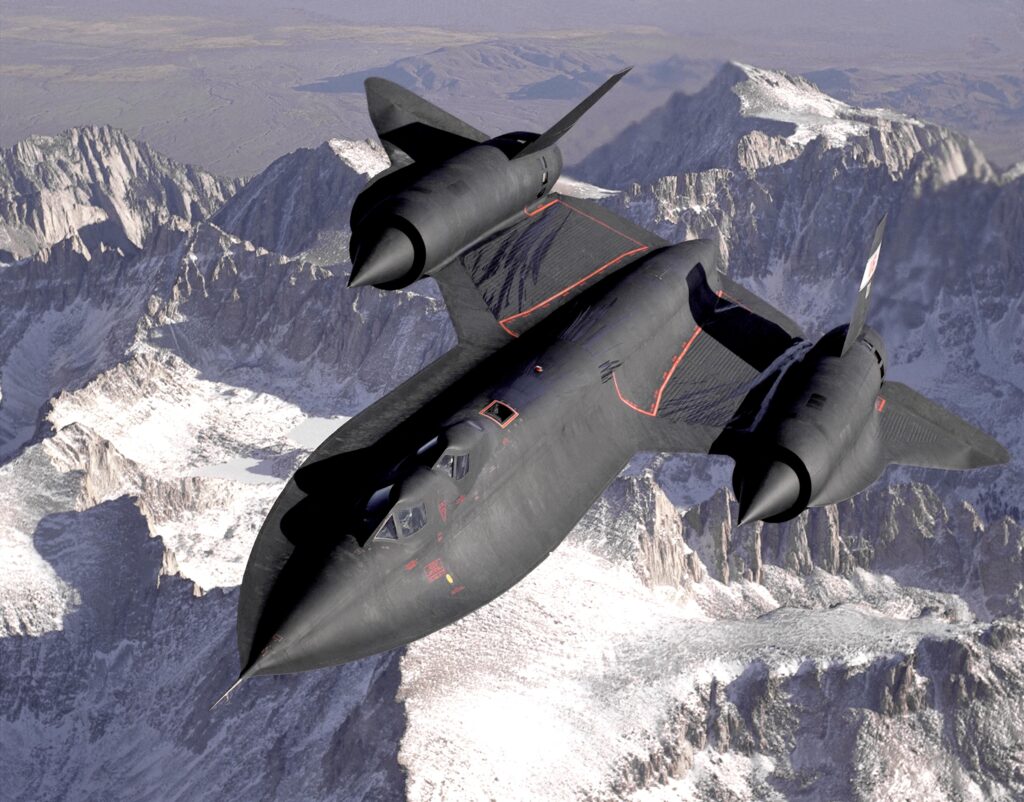

The SR-71 Blackbird is arguably the most iconic supersonic aircraft ever built. Capable of sustained Mach 3.3+ flight at 85,000 feet, it outran every missile and interceptor ever launched against it during its 34-year career. Not a single Blackbird was lost to enemy action.
Design & Development
Designed by legendary engineer Kelly Johnson at Lockheed’s Skunk Works, the SR-71 featured revolutionary technologies: titanium airframe (85% of structure), chine-shaped fuselage for reduced radar cross-section, and unique J58 engines that functioned as turboramjets at high speed. The aircraft’s skin temperature reached over 300Β°C during cruise, causing the airframe to expand several inches.
Operational History
From 1966 to 1998, the SR-71 conducted strategic reconnaissance missions worldwide. It could survey 100,000 square miles per hour from 80,000+ feet. The aircraft set the absolute speed record for air-breathing crewed aircraft: 3,529.6 km/h (Mach 3.3) on July 28, 1976βa record that still stands today.
Limitations & Challenges
Despite its legendary status, the SR-71 faced significant operational challenges. The aircraft required specialized JP-7 fuel with an extremely high flash point, which was so difficult to ignite that triethylborane (TEB) injection was needed for engine starts β each aircraft carried only 16 TEB shots per mission. The titanium airframe expanded several inches at cruise speed due to thermal stress, requiring the fuselage panels to be loosely fitted on the ground, which caused the aircraft to leak fuel continuously while taxiing.
Maintenance was extraordinarily demanding: each flight hour required over 300 hours of maintenance. The reconnaissance cameras and sensors, while advanced, could not operate through cloud cover, limiting mission flexibility. Operating costs exceeded $200,000 per flight hour (in 1990s dollars), contributing to the program’s retirement in 1998 as satellite reconnaissance became more cost-effective [1].
Fun Fact
The SR-71 leaked fuel on the ground because its titanium panels were designed with gaps to allow for thermal expansion at Mach 3+. It had to refuel shortly after takeoff.
Armament & Weapons
The SR-71 carried no offensive weapons β its defense was pure speed. No missile or interceptor ever caught one. Equipment included:
- ASARS-1 β Advanced Synthetic Aperture Radar System
- OBC (Optical Bar Camera) β could photograph a license plate from 80,000 ft
- ELINT sensors β electronic intelligence gathering
- DEF systems β defensive electronic countermeasures
The aircraft could survey 100,000 square miles per hour of territory.
Frequently Asked Questions
How fast is the SR-71 Blackbird?
The SR-71 could fly at Mach 3.3+ (2,193+ mph / 3,529+ km/h), making it the fastest air-breathing crewed aircraft ever. Its actual top speed remains classified.
Why did the SR-71 leak fuel on the ground?
The SR-71’s titanium skin panels had gaps to allow thermal expansion at Mach 3+, where temperatures exceeded 500Β°F (260Β°C). At rest, JP-7 fuel seeped through these gaps.
How many SR-71s were built?
32 SR-71 aircraft were built by Lockheed’s Skunk Works division.
Is the SR-71 still in service?
No. The SR-71 served from 1966 to 1998 (USAF) and 1999 (NASA). It was never intercepted or shot down during its career.
References & Sources
- [1] Merlin, P.W. (2009). Design and Development of the Blackbird: Challenges and Lessons Learned. AIAA 2009-1522. DOI: 10.2514/6.2009-1522
- [2] Graham, R.H. (1996). SR-71 Revealed: The Inside Story. Zenith Press. ISBN: 978-0760301227
